SCANDIC CRANE
SC-41

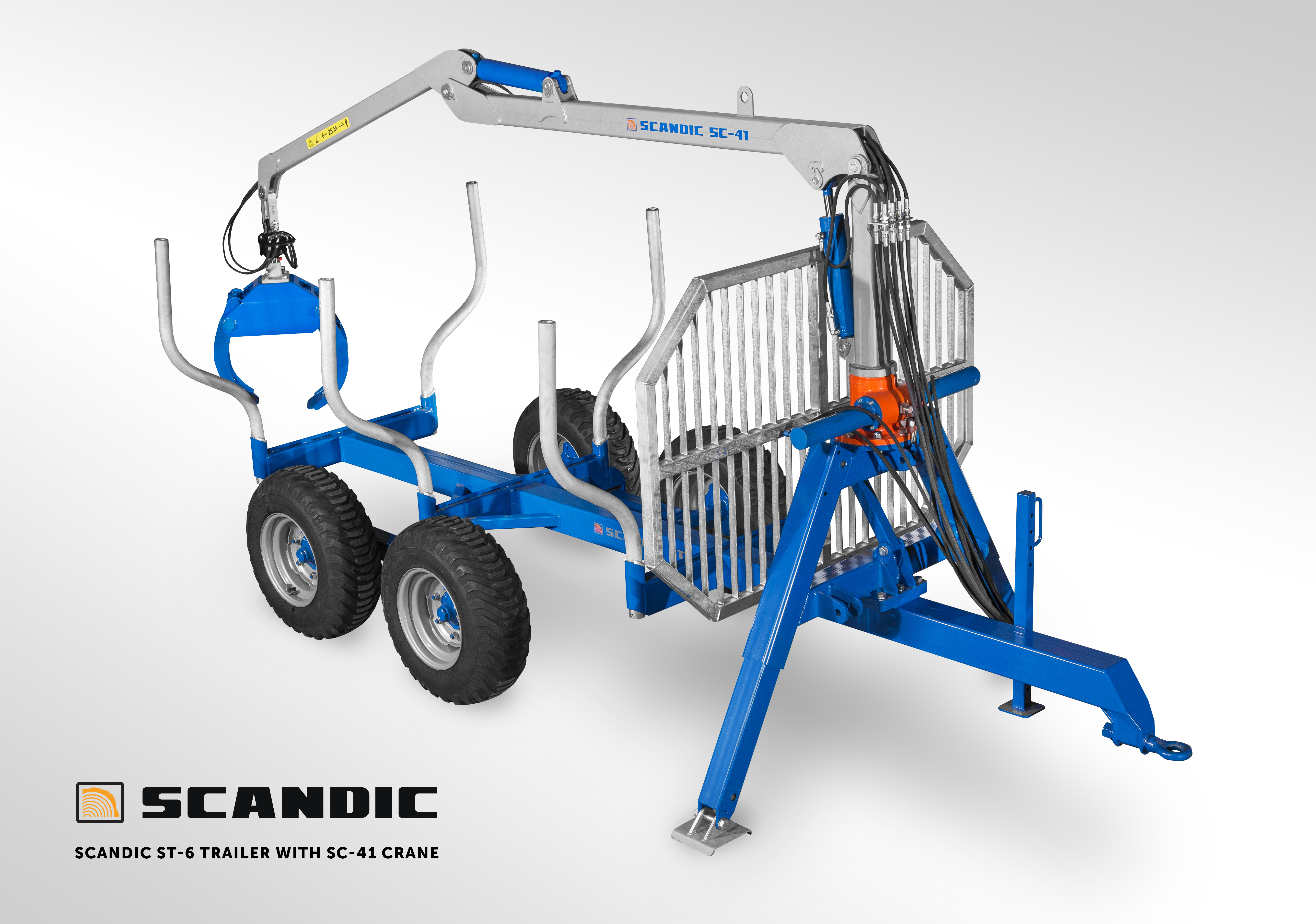

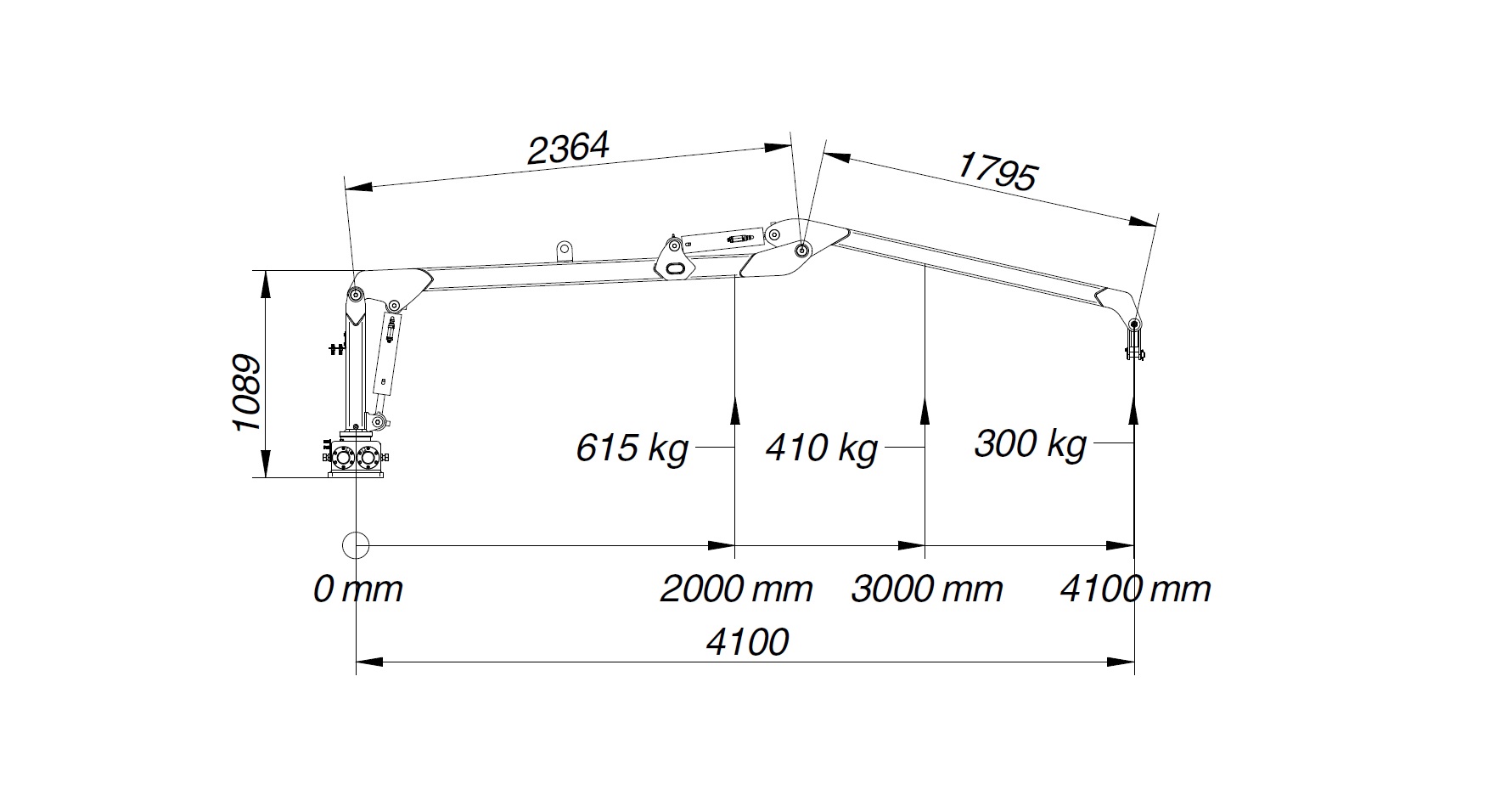

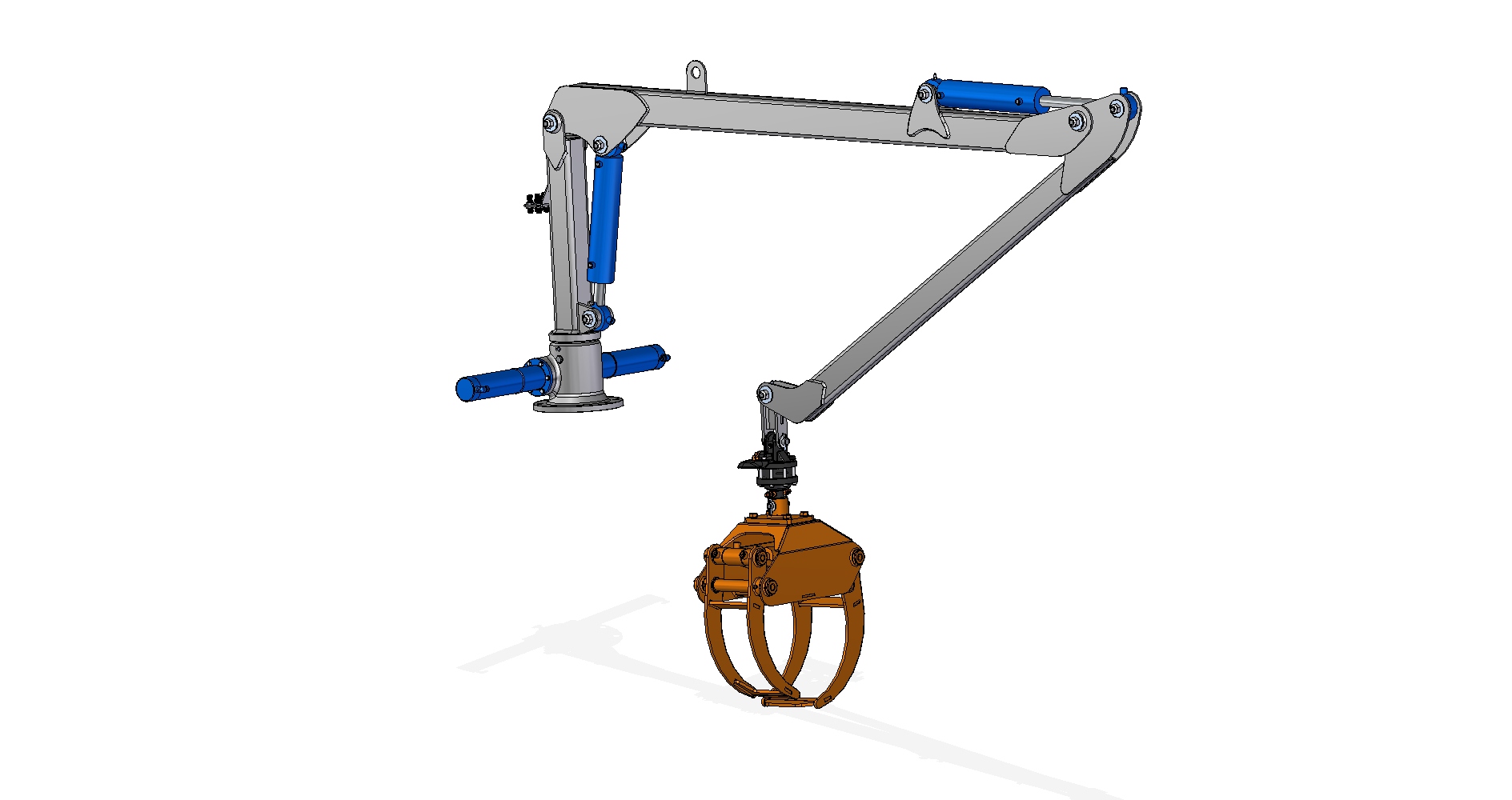

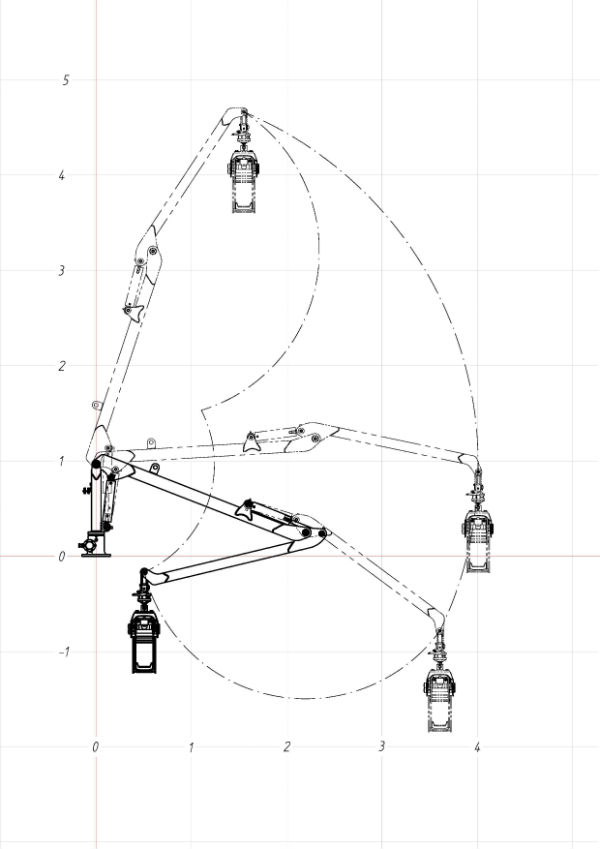

SCANDIC SC-41 is a lightweight crane and is suitable for small trailers like our ST-6. It can also be mounted on A-support legs and attached directly to the tractor using 3-point fastenings. The loader can be equipped with Hydrocontrol TR-5/7 X-Y control valve. It reaches as far as 4,1 m and can lift off a 300 kg load from that distance.
SC-41 features:
- - 4,1 m of maximum outreach
- - 300 kg of lifting capacity at maximum outreach
- - 4,4 kNm of slewing torque
- - 244 kg of mass
- - 0,1 m2 of standard grapple load
| Crane | SC-41 |

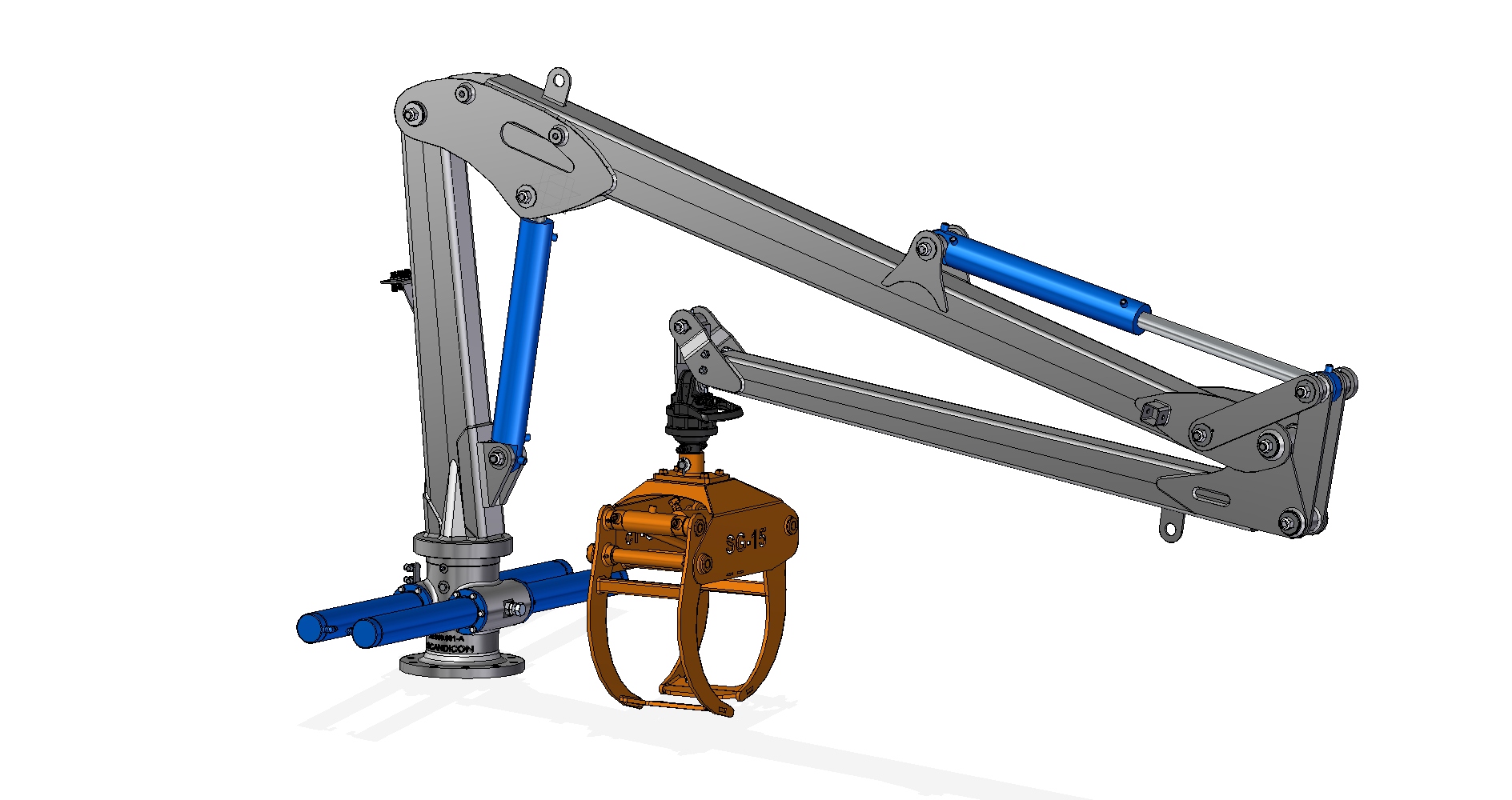

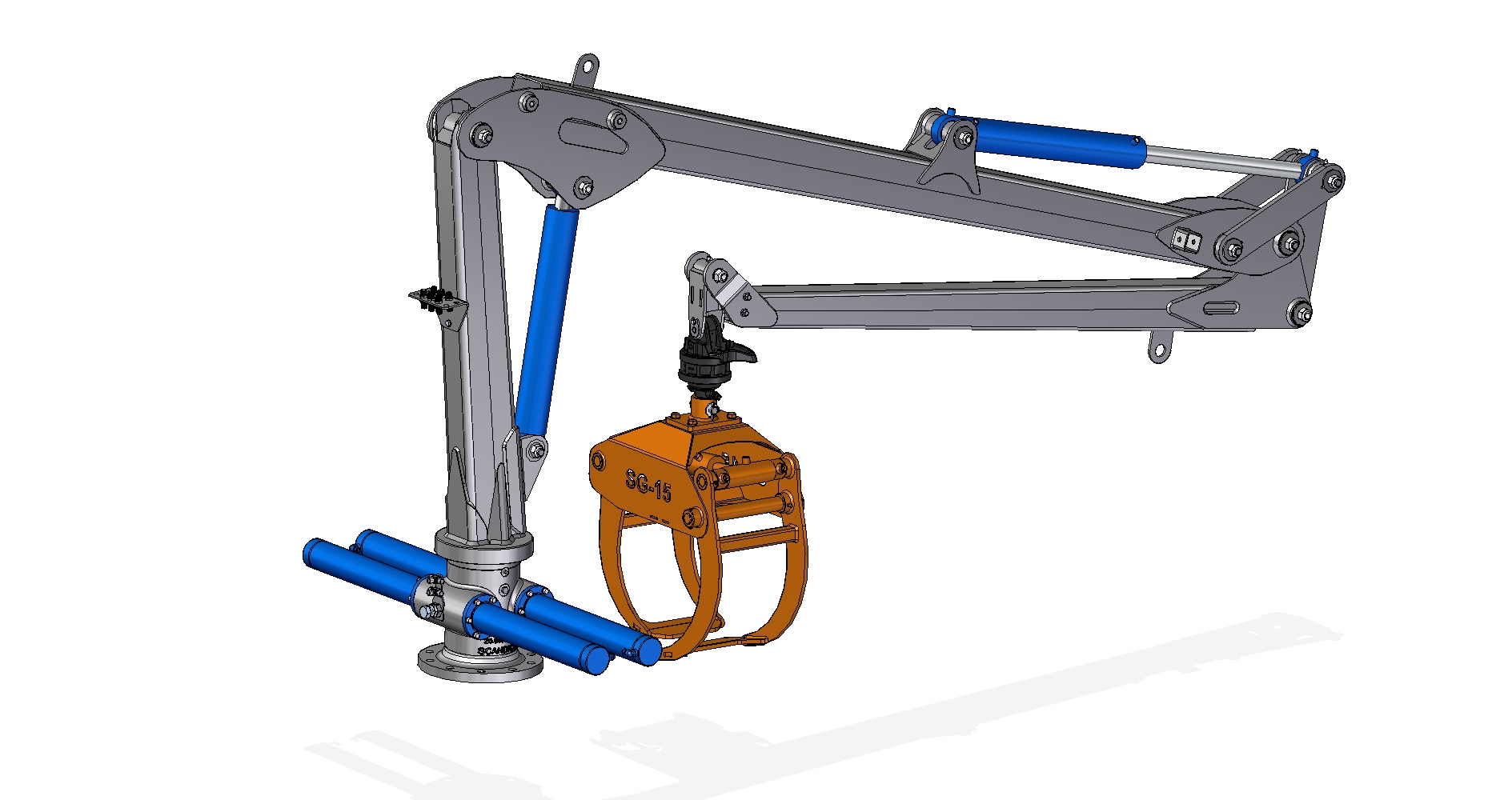

SC-53 |

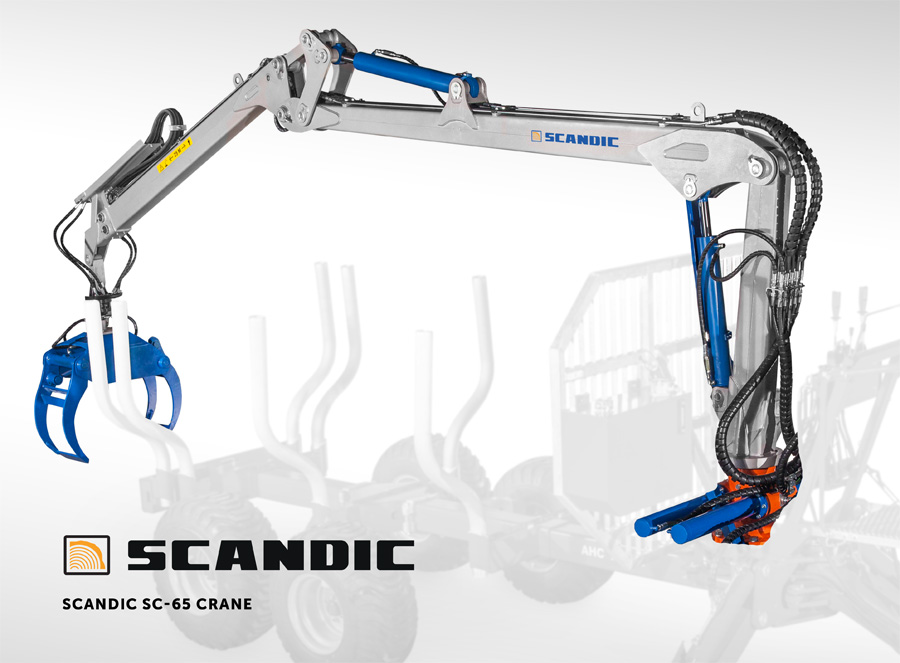

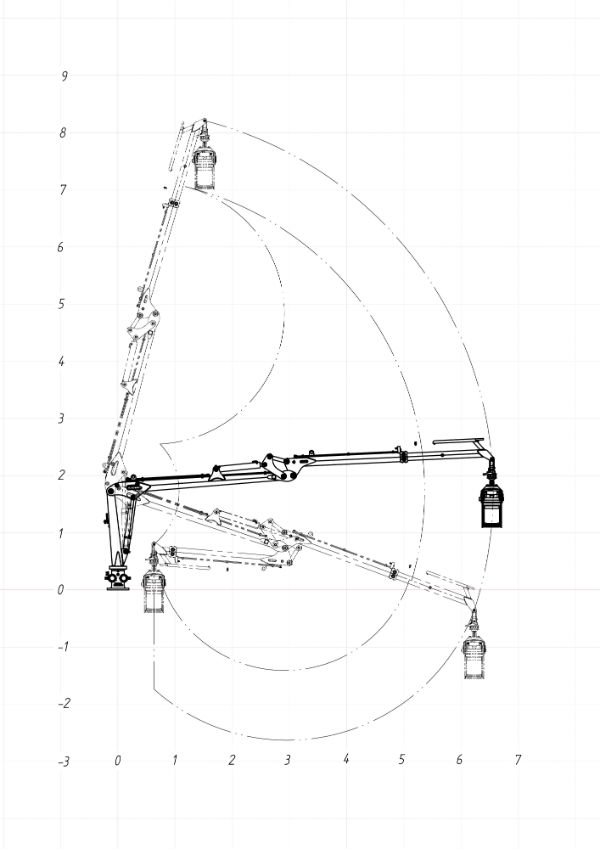

SC-65 |

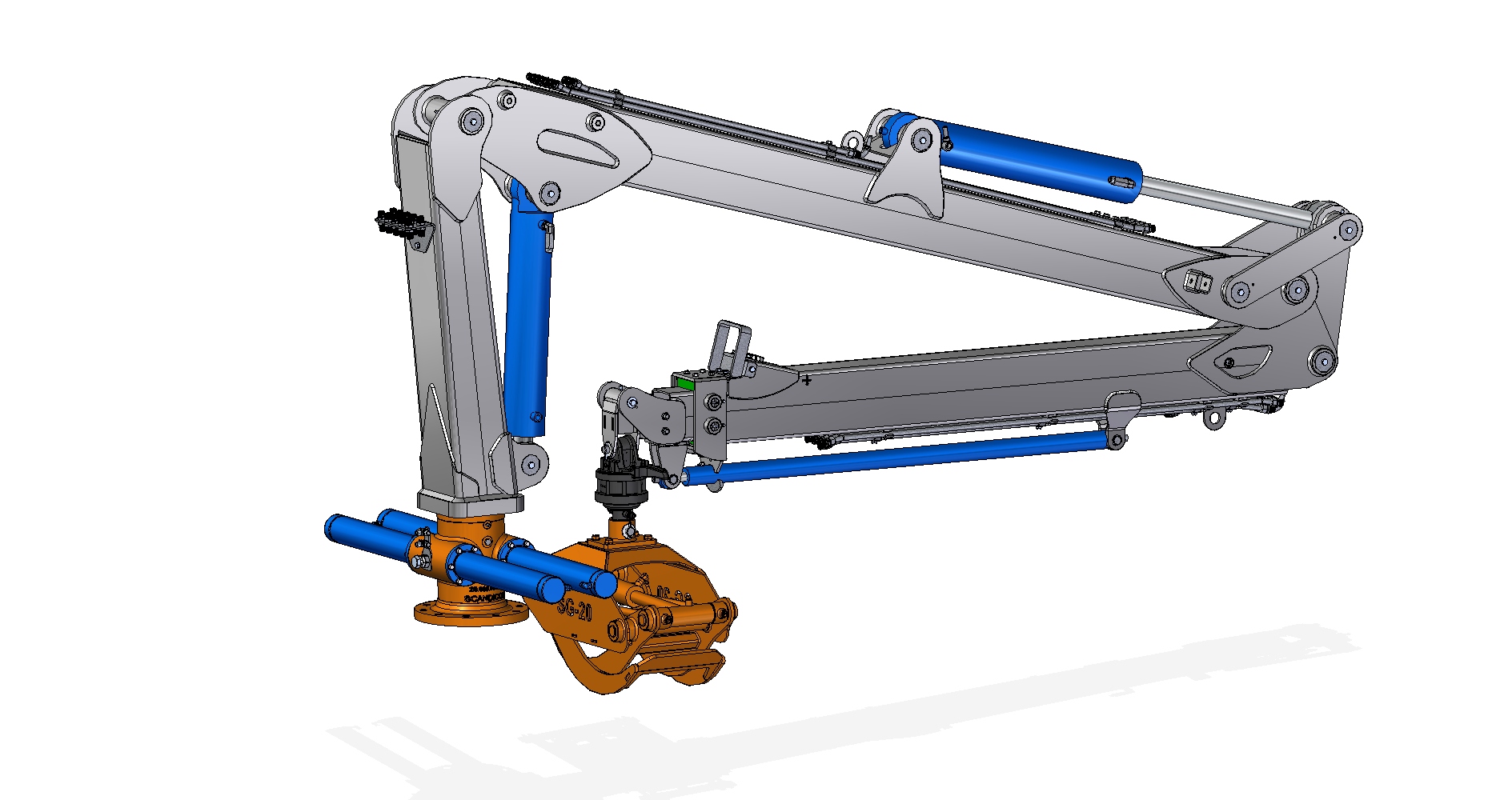

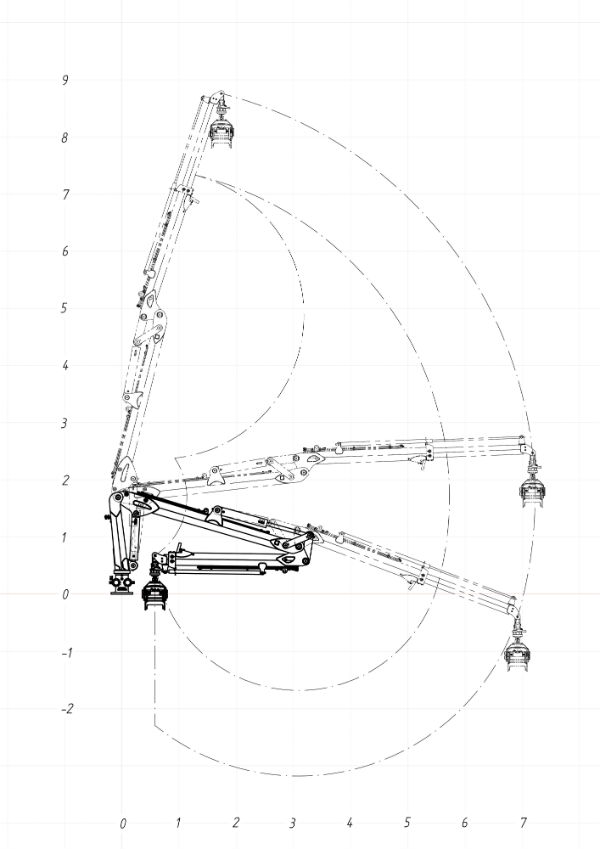

SC-72 |

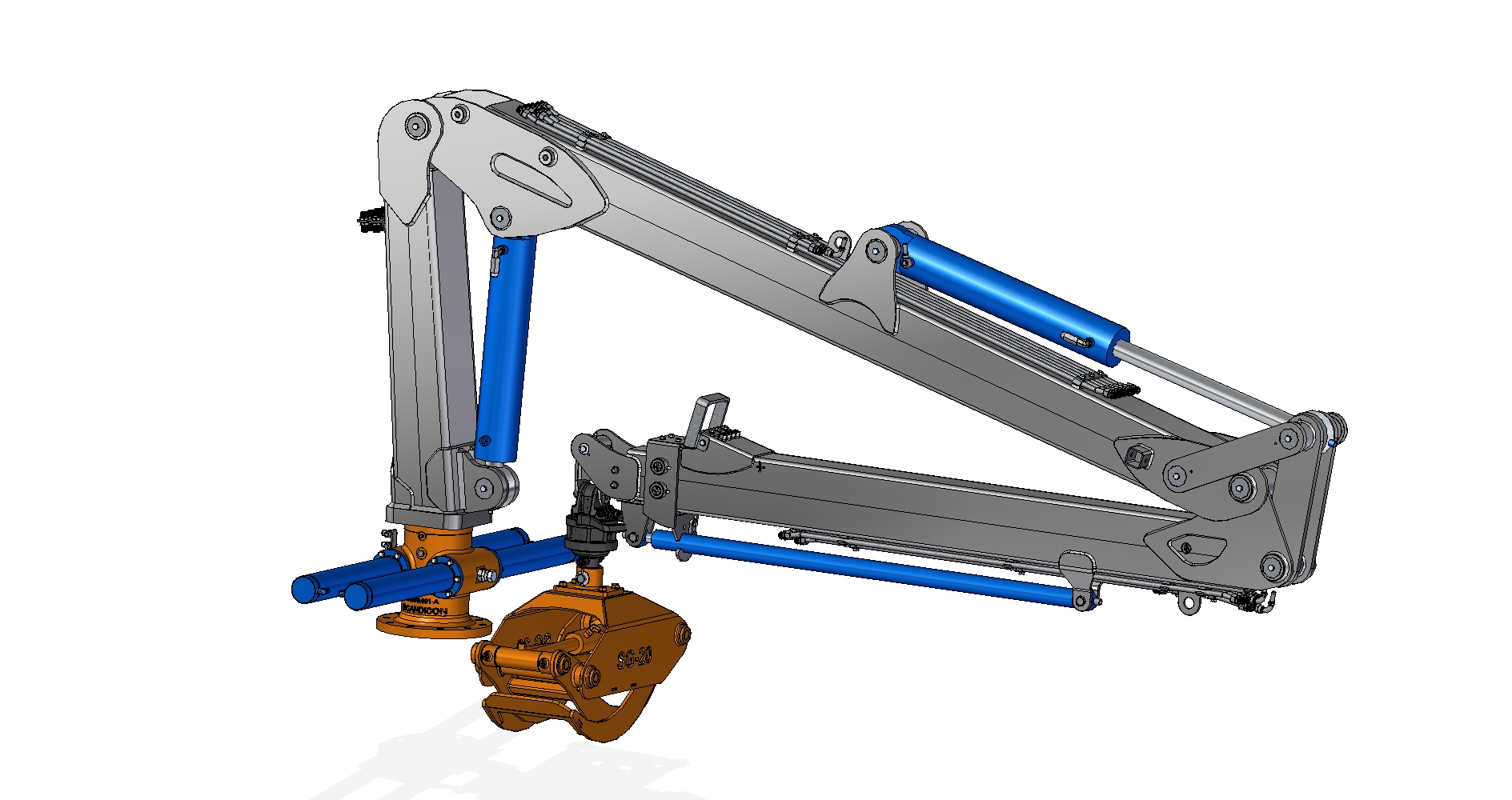

SC-72PRO |

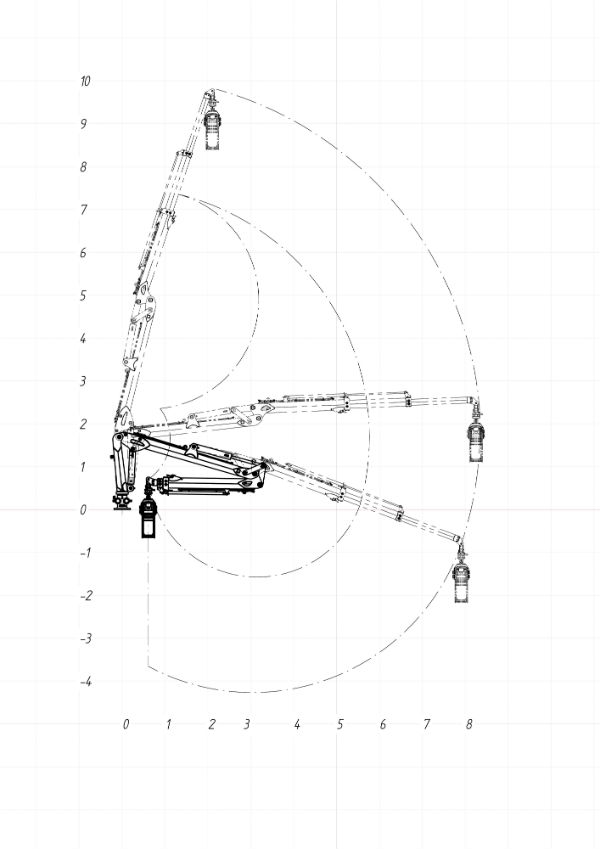

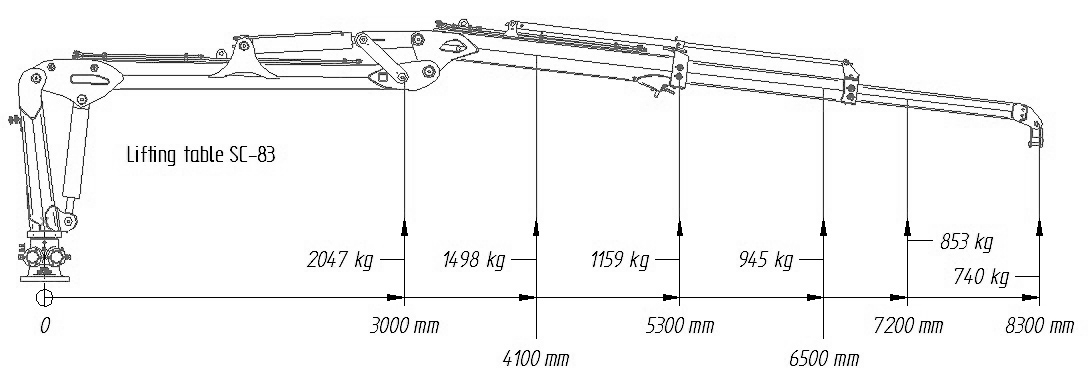

SC-83 |

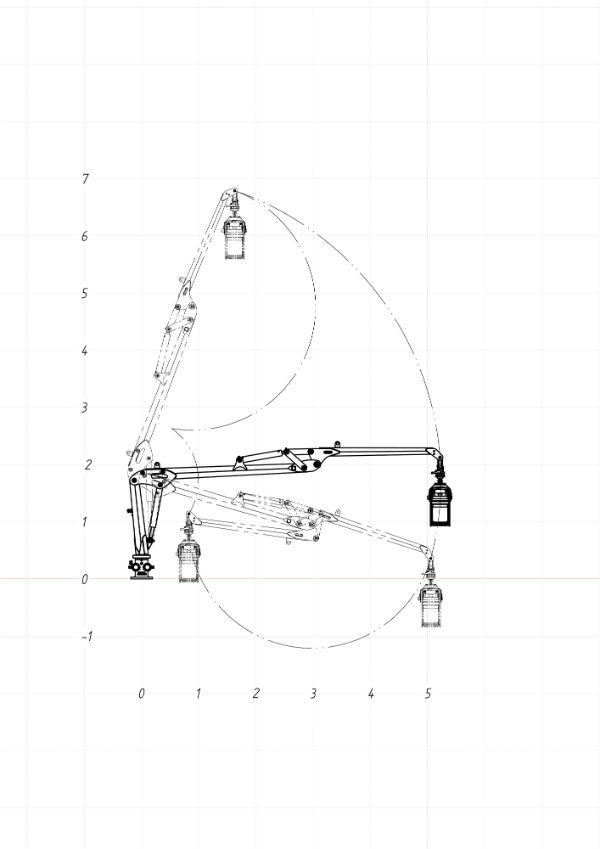

| Max.outreach, m | 4,1 | 5,3 | 6,5 | 7,2 | 7,2 | 8,3 |
| Max. operating pressure, bar | 180 | 180 | 180 | 180 | 180 | 180 |
| Slewing angle | 360° | 360° | 360° | 360° | 360° | 360° |
| Slewing cylinders, pcs | 4 | 4 | 4 | 4 | 4 | 4 |
| Slewing toque, kNm | 4,4 | 14,5 | 14,5 | 14,5 | 18,3 | 18,3 |
| Telescope(s) outreach, m | - | - | 1,2 | 1,45 | 1,5 | 1,3+1,3 |

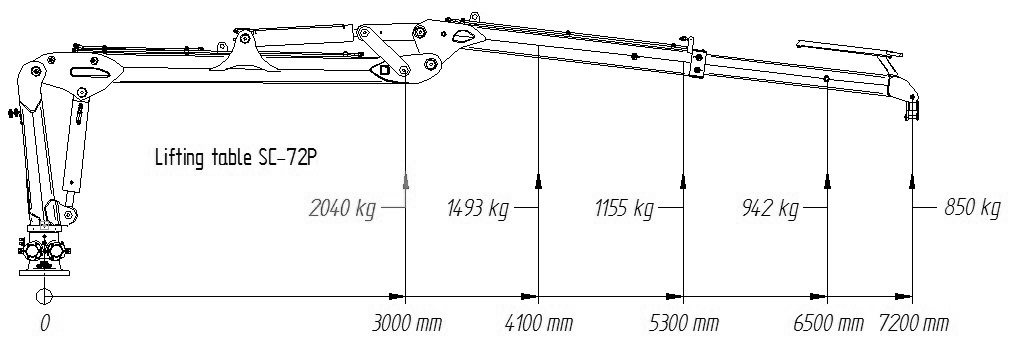

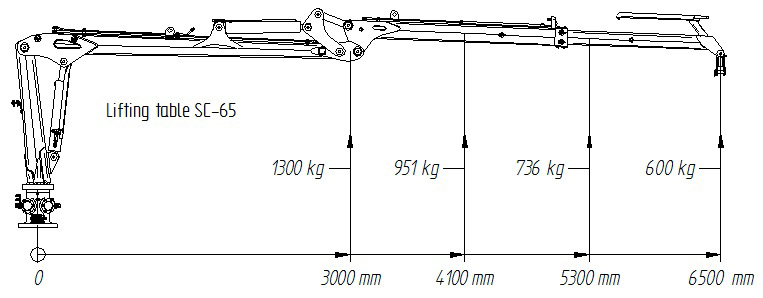

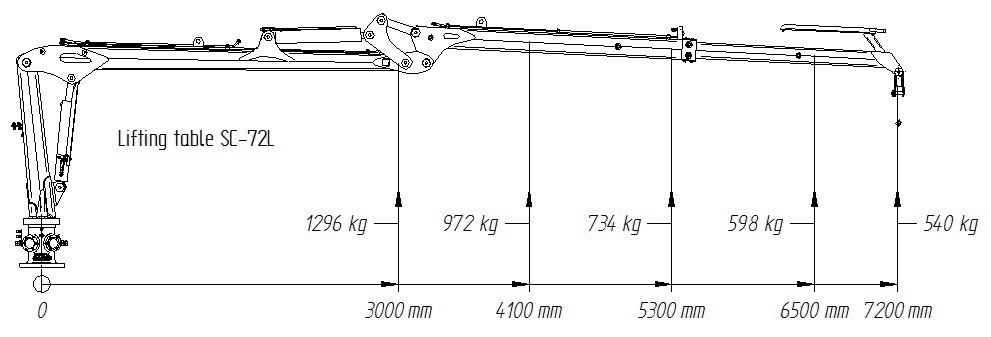

| Lifting capacity at max. outreach | 300 kg | 600 kg | 600 kg | 547 kg | 850 kg | 740 kg |
| Standard grapple load section area, m2 | 0,1 | 0,15 | 0,15 | 0,2 | 0,2 | 0,25 |
| Rotation torque, Nm | 350 | 800 | 900 | 900 | 900 | 1100 |
| Mass | 244 | 663 | 750 | 790 | 1074 | 1196 |
